PVDF Aluminum Composite Panel

Shanghai Aluwide New Material Co., Ltd

Location: China
Business Type: Manufacturer, Exporter, Brand Holder
Brands: ALUWIDE
Certificate: CE, SGS
Terms of payment and delivery: T/T
Minimum order quantity: 300 Square meter
Price: Consultation
Packing details: Wood Package or In Bulk
Delivery time: 7-20 days

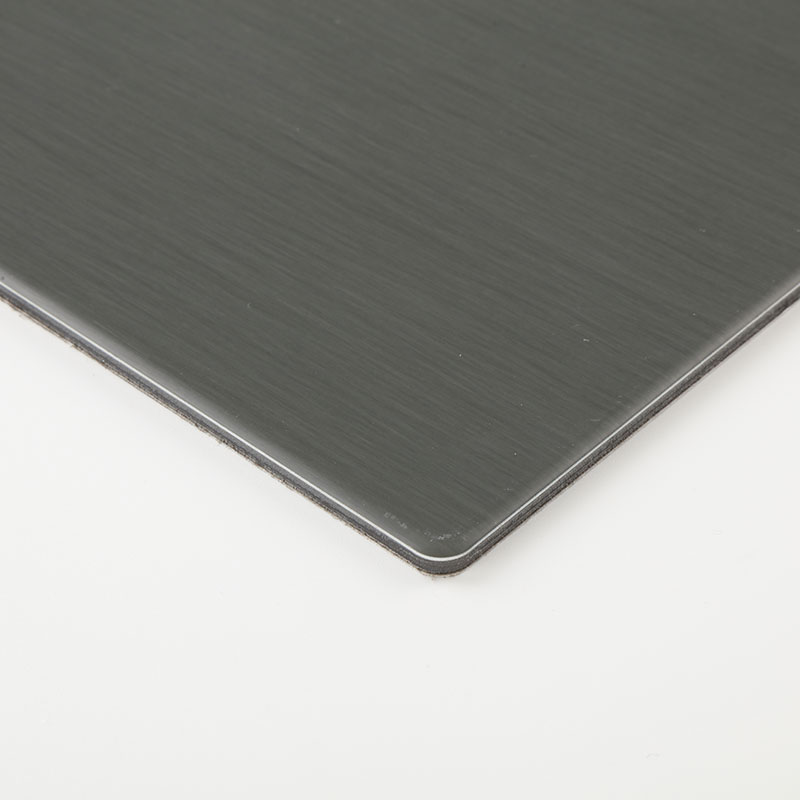

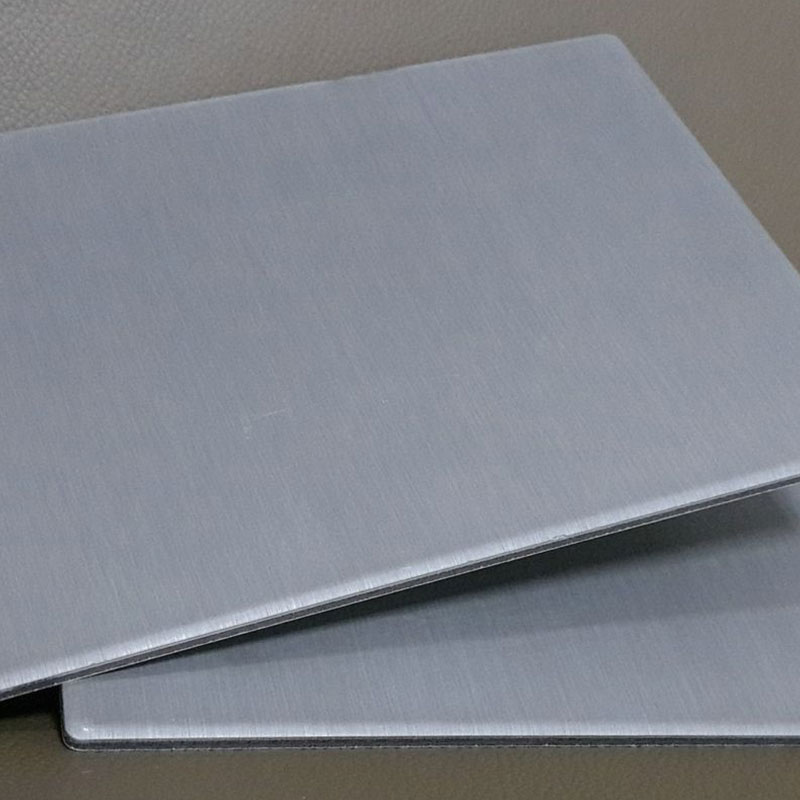

ALUWIDE Composite Panel


ALUWIDE® composite panel is composed of two aluminium sheets and formed by low density polythene (LDPE) and DUPONT adhesive polyolefin film with continuously high temperature and high press.

The surface aluminum sheet has been coated with PVDF (polyvinylidene fluoride).  And the backside aluminum sheet has been protected with an anticorrosive primer coat.

It has excellent mechanical properties, providing bending rigidity with reduced weight, surface flatness, durability and ease of maintenance.


Raw Material

Aluminum Material: High strength aluminum alloy sheet

Core Material: Non-toxic low-density polyethylene

Surface Coating: PVDF coating

Bottom Coating: Anticorrosive primer coating


Characteristic of PVDF ALUWIDE Composite Panel


1.High Peeling Strength

ALUWIDE panel is cross linking under high temperature with high performance and molecular binding materials from DuPont, which reaches the best level for the important feature high peeling strength.


2.Superior Weather Resistance

By means of KYNAR500 based PVDF coating resin, ALUWIDE panel possesses superiorities in corrosion resistance, alkali resistance, chalking resistance of ultraviolet light. When exposed to the heat of tropical sunshine or the cold of frigid snowstorm, the panel never loses its colorful appearance.


3.Light Weight and Easy to Process

ALUWIDE panel is easy to process for its light weight (3.7-5.7kg/m2) which can decrease the loss during an earthquake. The processing such as cutting, planning, bending to arc and several configurations in right angle can be done by some simple woodworking tools. Designers can also make the flexibility in the panel. The installation work is going to be easy and fast. For this reason, it can save the cost.


4.Excellent Fireproof Property

Its core layer is manufactured with Anti-toxic polyethylene core materials, having the combustion resistance property. Two surface layers are made of aluminum, which is difficult to be burnt. This is a kind of safe fireproof materials, complying with the fireproof demand in building code.


5.Coating Evenness, Multiple Colors

Since applied the chemosynthesis treatment and Henkel technology, the adhesion between the paint and panel becomes evener, having multiple colors. There is more space for your choice to the color with individuality.


6.Easy to Maintain

The anti-contaminant property has been obviously improved for ALUWIDE aluminum composite panel. Due to good self-cleaning capability, neutral detergent can clean the panel easily even though the pollution is very serious.


7.Impact Resistance

The impact resistance and toughness are strong. The coating layer can’t be crashed when it's bent. The panel can’t be damaged when in a strong windy and sandy condition


111
Views: 439




Standard (mm)More Choice (mm)
Panel Thickness43, 5, 6
Copper Thickness0.30.2, 0.4, 0.5
Panel Width12201250/1500/1550/1575/2000mm
Panel Length2440Customized
