FR Aluminum Composite Panel

Shanghai Aluwide New Material Co., Ltd

Location: China
Business Type: Manufacturer, Exporter, Brand Holder
Brands: ALUWIDE
Certificate: CE, SGS
Terms of payment and delivery: T/T
Minimum order quantity: 800 Square meter
Price: Consultation
Packing details: Wood Package or In Bulk
Delivery time: 7-20 days



画板 1(3).jpg

ALUWIDE Fire-resistant Aluminum Composite Panel

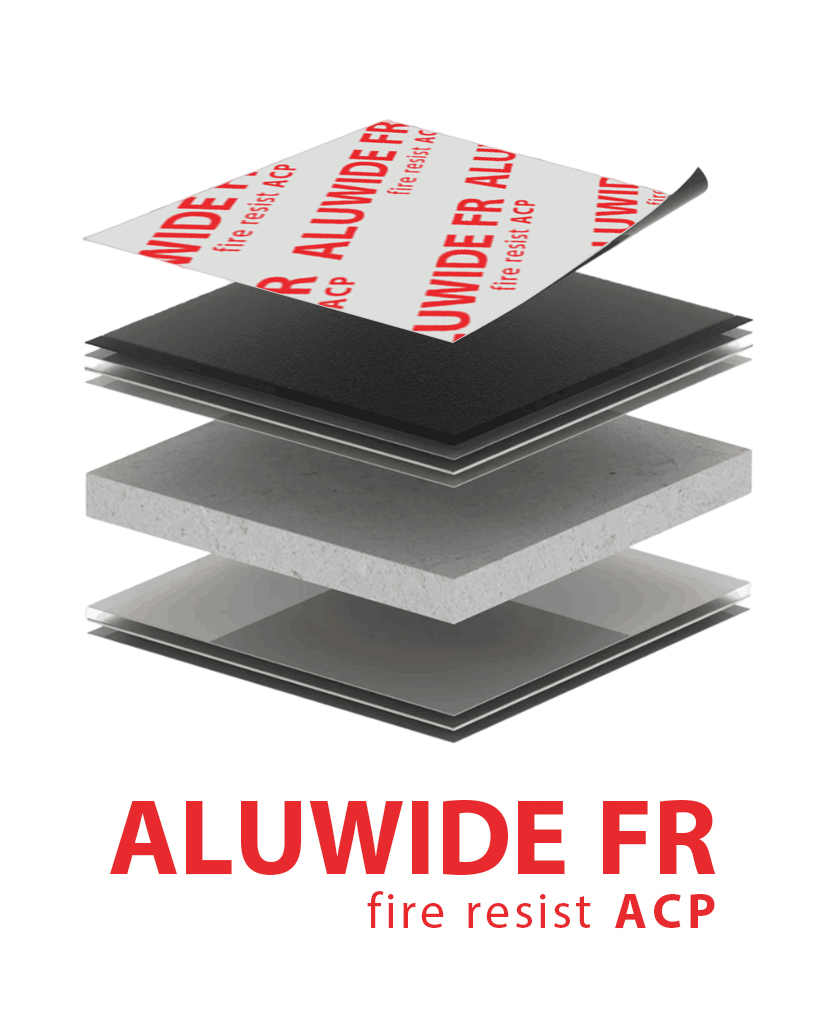

ALUWIDE® composite panel is composed of two aluminium sheets and a mineral charge inner core.

It has excellent mechanical properties, providing bending rigidity with reduced weight, surface flatness, durability and ease of maintenance.


It is specially designed for ventilated facades of new construction as well as for their renovation or rehabilitation.  It provides adaptable solutions to all fields of architecture.

Its manufacturing standard consists of an outer sheet of aluminium alloy 5005 and an inner sheet of 3105.


There are two different cores available depending on their mineral charge which may be non-combustible or fire retardant,

and are classified (in accordance with UNE 13501-1:2007) as A2-s1, d0 (ALUWIDE® A2) and B-s1, d0 (ALUWIDE® FR).


It offers a full range of colours, glosses, textures and natural finishes. It can also be supplied in any colour from the RAL / PANTONE / NCS charts. Please enquire us for details.

ALUWIDE® composite panel is available in multiple standard dimensions up to 2000 mm wide. Other dimensions can be supplied under request.






Characteristic of Fire-resist Aluminum Composite Panel

                                           Standard
                                No.
Burning
Degree
ChinaGermanyUSAUKFranceJapanRussia
GB/T8627DIN 4102ASTM E84BS 476NFF 16-101JIS K691130244-94
MinimalAA1, A2E84OMO1T1
MinorB1B1NC1M1, M22T2
NormalB2B2A2,3M33T3
SevereB3B3B, C4M4, M5-


70
Views: 219






Standard (mm)More Choice (mm)
Panel Thickness43, 5, 6
Copper Thickness0.30.2, 0.4, 0.5
Panel Width12201250/1500/1550/1575/2000mm
Panel Length2440Customized
